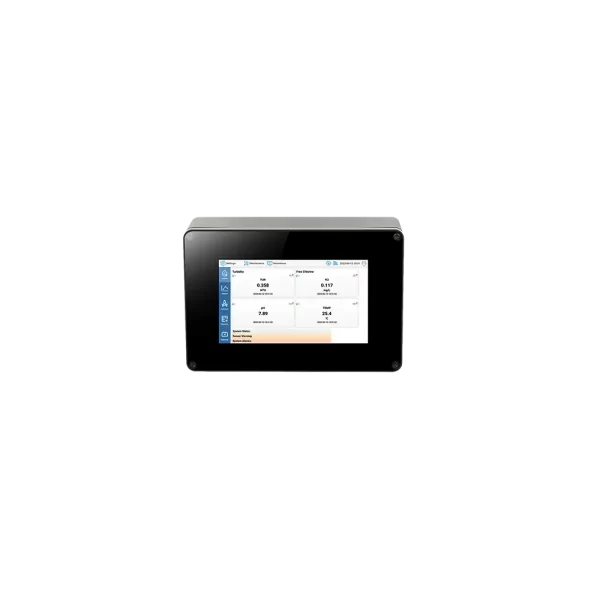

MC-W-S Meter Controller
The meter controller uses a 7-inch color LCD screen and can connect to multiple sensors simultaneously. Users can quickly configure sensor information, connect to the controller, and display data and graphs in real-time. It supports wireless data output, can upload the collected data to the cloud, and supports the HTTP and MQTT protocols.
Parameter: multi-parameter analyzer, COD, TUR, NO3-N, TOC, NO3-, BOD, TSS, Color, NO2-N, Temperature, pH, DO, ORP, Fe, NH3-N, NH4+, O3, and etc.
- Up to 4 sensors can be connected
- Support 4-20 mA output, IO output
- Strong compatibility can be connected to all our sensors and other RS485 communication methods.
- LCD touch screen, clear display, easy to operate
- Wireless communication, support 2G/4G, Wi-Fi
Specification
| Item | Specification |
|---|---|
| Display | 7-inch color LCD screen with touch function |
| Dimension | 230×154×68mm |
| Power requirements | DC 24V |
| IP rating | IP65 |
| Power | < 15W (Unconnected sensor) |

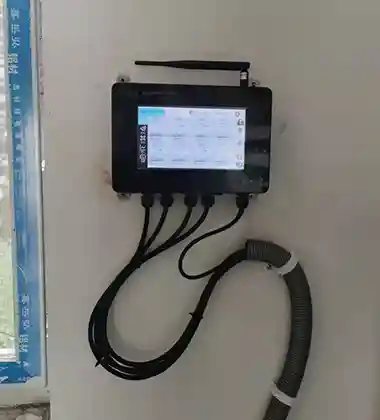

| Installation | Wall – mounted |
| Data storage | 32GB |
| Communication | RS485 (Modbus RTU), 2G/4G, Wi-Fi, Bluetooth |
| Data output | RS485, 4-20mA, IO |
Parameter
| Model | Output Interface | Input Interface | Wireless Communication |
|---|---|---|---|
| MC-W-S | one channel RS485 output. two expansion ports (Each expansion port can support two channels of 4-20 mA or four channels of I/O) | four channels RS485 input | WIFI, 4G (optional) |
Application
Municipal Sewage Pipeline Monitor
Real-time monitoring to control the movement of sewage and prevent sewage from flowing into polluted water bodies
Online Nitrate Monitoring during Domestic Sewage Treatment
online nitric nitrogen monitoring system with automatic filtering and cleaning functions
COD Turbidity NO3-N Sewage Monitoring
500 Ton per Day Rural Sewage Treatment Monitoring
Coal Mine Wastewater Leakage Monitoring
Coal Mining Industry Water turbidity real-time quality supervising
