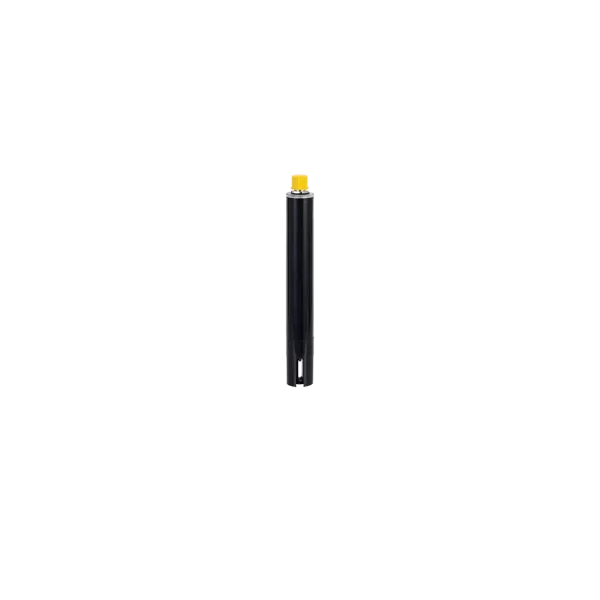

SPS-EC Conductivity Water Quality Sensor
The conductivity water quality sensor operates with an alternating voltage between the measuring electrodes, generating a corresponding current in the medium. The magnitude of the current is positively correlated with the conductivity of the medium, thus measuring the conductivity of the medium. The SPS-EC has a reference electrode to compensate for the measurement errors caused by polarization, making the measurement results more accurate.
The SPS-EC sensor has a built-in five-point interpolation algorithm that allows the user to calculate TDS and salinity from conductivity. The SPS-EC series conductivity sensor uses an RS485 communication interface and Modbus RTU protocol communication, which is widely used and easy to use. It is widely used in tap water, surface water, groundwater, domestic sewage, and other scenarios to provide customers with stable and reliable water quality monitoring data.
Parameter: EC, Conductivity, TDS, Salinity, Temperature
- Easy to install
- Low maintenance costs
- Multiple shapes for different installation conditions
Specification
| Item | Specification |
|---|---|
| Principle | Coaxial 4 graphite electrodes |
| Dimension | φ25×196mm |
| Power requirements | DC+12V~+24V |
| Operating temperature | 2 to 50℃ |
| Pressure | 1 bar |
| Installation | Submerged, Flow-through |
| Sample flow rate | 200-500mL/min |
| Communication | RS485(Modbus RTU), Bluethooth |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| EC (Conductivity) | SPS-EC | 0.001-200 000 μS/cm | Minimum 0.001 μS/cm | ± 5% |
| TDS | SPS-EC | 0.01-100 000 mg/L | Minimum 0.01mg/L | ± 5% |
| Salinity | SPS-EC | 0.01-120 000 mg/L | Minimum 0.01mg/L | ± 5% |
| Temperature | SPS-EC | 0-50 °C | 0.1 °C | ± 1 °C |
Application
River, watershed monitoring
Effective for influent and effluent monitoring in both domestic and industrial wastewater.
Sewage Treatment Optimization
Supports treatment process efficiency, providing actionable data for parameter adjustments.
Urban Water Networks
Monitors water quality in municipal pipe networks to ensure compliance and quality.
Environmental Water Bodies
Ideal for basin, surface water, and groundwater monitoring.
