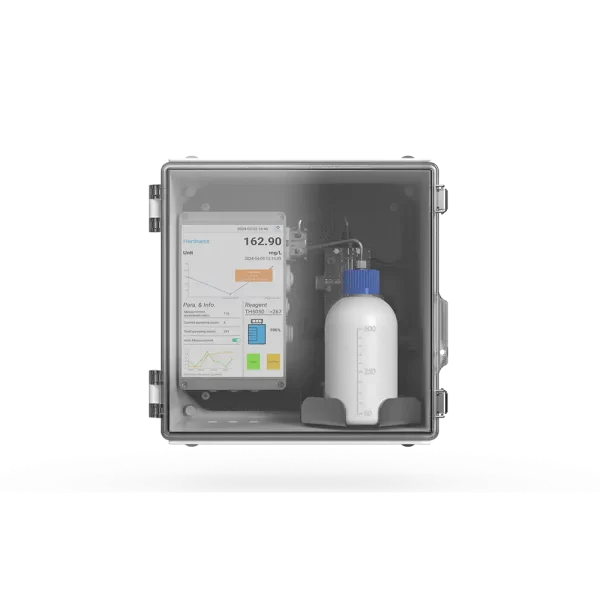

SPA-Hardness-S01 Hardness Water Analyzer
The hardness water analyzer measures water hardness by titration and colorimetry. It automatically pumps reagents into the water sample for reaction, determines the reaction’s endpoint by colorimetry, and determines the hardness concentration in the water based on the amount of reagent added. The analyzer can measure different hardness concentrations by selecting different reagents.
Parameter: Total Hardness
- Accurate and reliable fully automatic hardness analyzer
- With self-diagnosis, abnormal alarm, data exceeding the standard alarm function
- Interval measurement optional, minimum 5min
- Supports Modbus RS485 and 4-20mA signal outputs
- Support 4G, WiFi wireless data transmission
Specification
| Item | Specification |
|---|---|
| Dimension | 300×300×180 mm (11.81×11.81×7.09 inch) |
| Power consumption | 25 W |
| Power requirements | 100-240 VAC, 50/60 Hz |
| Operating temperature | 5 to 45℃ |
| Pressure | 0.2-2 bar |
| Installation | Wall-mounted |
| IP rating | IP54 |
| Communication | RS485(Modbus RTU), WiFi/Bluetooth, 4G, LoRa |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Total hardness | SPA-Hardness | 5.34-534.0 mg/L (ppm) CaCO3 (see reagent type) | ±5% | ±5% |
Application
River, watershed monitoring
Effective for influent and effluent monitoring in both domestic and industrial wastewater.
Sewage Treatment Optimization
Supports treatment process efficiency, providing actionable data for parameter adjustments.
Urban Water Networks
Monitors water quality in municipal pipe networks to ensure compliance and quality.
Environmental Water Bodies
Ideal for basin, surface water, and groundwater monitoring.
