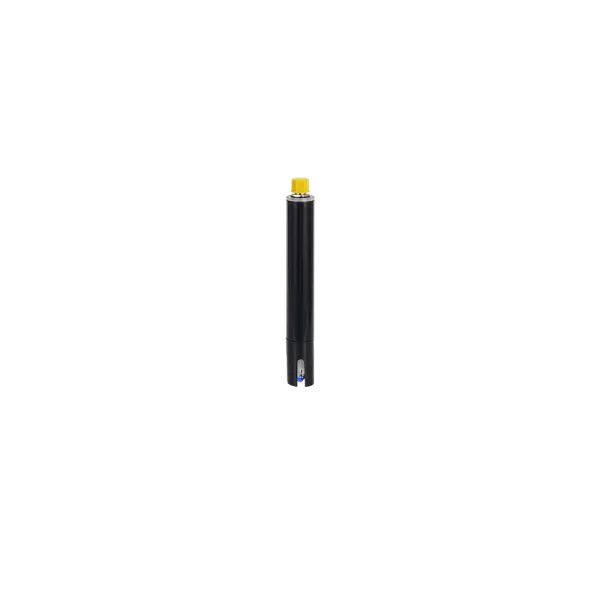

SPS-ORP Water Quality Sensor

The water quality sensor (redox potential sensor) adopts the electrode principle, can measure the redox potential, and can react to the water samples’ redox strength; the sensor is widely used in water, pipe networks, medical sewage, and other fields and can provide customers with accurate and efficient monitoring.

  • Electrodynamic measurement, no pollution, friendly to the environment
  • Quick measurement: the shortest measurement cycle is 1 second
  • RS485 communication mode can quickly connect to the meter controller, control the sensor
  • IP68 protection grade can be used in harsh environments
  • Low power consumption, can be powered by battery, convenient for equipment deployment

Specification

ItemSpecification
PrincipleGlass electrode method
Dimensionφ25×226mm
Power requirementsDC+12V~+24V
Operating temperature2 to 50℃
Pressure1 bar
InstallationSubmerged, Flow-through
Sample flow rate200-500mL/min
CommunicationRS485(Modbus RTU), Bluethood

Parameter

ParameterModel No.RangeResolutionAccuracy
（Standard solution）
ORPSPS-ORP -1500 mV – +1500 mV1 mV ±20 mV
TemperatureSPS-ORP0-50 °C 0.1 °C ± 1 °C

SPS-ORP Datasheet

Specsens Brochure

Application

Sewage Treatment plant water sensor analying
Rural Sewage Treatment Station

The central control system timely controls the time required for each reaction stage through data fed back by sensors, greatly improving the efficiency of sewage treatment facilities.
