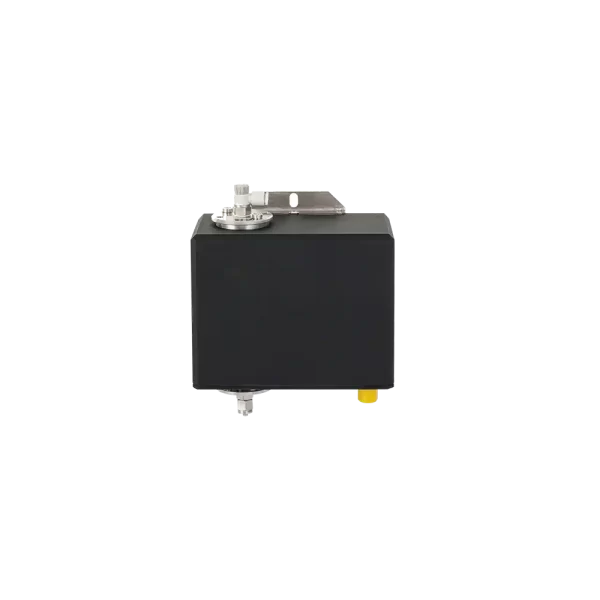

SPS-T-SC3 Ultra-low Turbidity Water Quality Sensor
The turbidity sensor is an ultra-low turbidimetry based on the principle of 90° scattered light, using high parallelism, with an automatic light intensity correction laser light source and a highly sensitive detector. Its detection performance at low turbidity (<1NTU) is excellent.
The turbidity sensor is equipped with an automatic optical window cleaning function, which is maintenance-free for a long time for tap water application scenarios. In addition, with the MC-W-S series meter controller and cloud service, users can realize on-site and remote data viewing.
Parameters: Turbidity, TUR
- Small and compact structure
- Accuracy comparable to SWAN and Hach Brand
- Pass CE/RoHS/vibration/high and low-temperature test
- 1-3 months secondary water supply sensor maintenance-free
- 3 months factory water sensor maintenance-free
- 1/4 the volume of 1720E and TU5300
- Withstand pressure up to 1 MPa (10 atm)
Specification
| Item | Specification |
|---|---|
| Principle | 90° scattering method |
| Dimension | 150 × 82 × 175mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 10bar |
| Power | < 6W |
| Cleaning method | Cleaning brush |
| Sample flow rate | 200-500m L/min |
| Communication | RS485(Modbus RTU) |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Turbidity | SPS-T-SC3 | 0-100 NTU/FNU | 0.001 NTU | ±2% or ±0.015 NTU |
Application
Urban Drinking Water Quality Monitoring
Monitor turbidity, pH, free chlorine, and other parameters, monitor water quality changes in real time, and provide strong protection for drinking water safety.
Water Supply Network Real-time Water Quality Monitoring
By deploying an intelligent online water quality monitoring network, real-time water quality monitoring can be performed at key nodes of the water supply network.
Online Drinking Water Quality Monitoring
By deploying an intelligent online water quality monitoring network, real-time water quality monitoring can be performed at key nodes of the water supply network.
