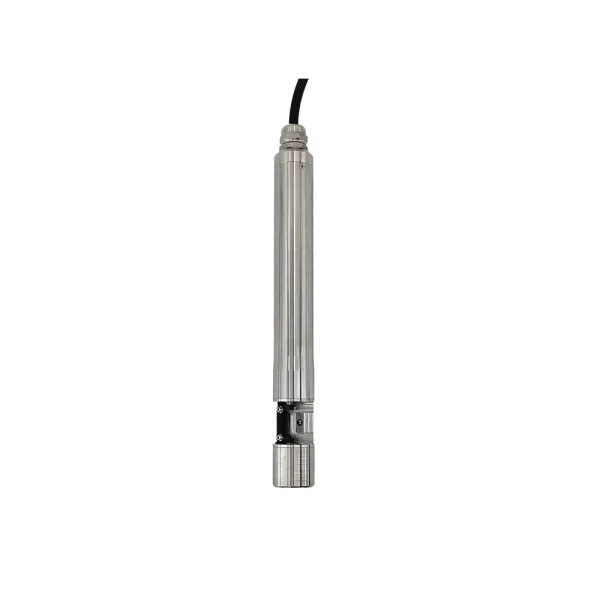

SPS-T-SC4 Turbidity Water Quality Sensor
The turbidity water quality sensor measures turbidity and suspended solids using the 90° scattered and 180°transmission light principle.
It is mainly used in surface water, domestic sewage, and industrial sewage.
The turbidity sensor is equipped with an automatic optical window cleaning function. In addition, with the MC-W-S series meter controller and cloud service, users can realize on-site and remote data viewing.
Parameters: Turbidity, TSS, SS
- Optical in-situ measurement
- Quick measurement: the shortest measurement cycle is 1 second
- The maintenance-free period is long, and the sensor has a cleaning brush
- RS485 communication mode can quickly connect to the meter
- IP68 protection grade can be used in harsh environments
- Low power consumption, can be powered by battery, convenient for equipment deployment
Specification
| Item | Specification |
|---|---|
| Principle | Transmission and 90° scattering |
| Dimension | φ30×267mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 6bar |
| Installation | Submerged, Flow-through |
| Material | AISI 316L |
| Cleaning method | Cleaning brush |
| IP rating | IP68 |
| Sample flow rate | <3m/s |
| Communication | RS485(Modbus RTU), Bluetooth |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Turbidity | SPS-T-SC4 | 0-1000 NTU/FNU | 0.001 NTU | ±3% or ±0.015 NTU |
| TSS | SPS-T-SC4 | 0-2000 mg/L | 1 mg/L | ±5% or ±5 mg/L |
