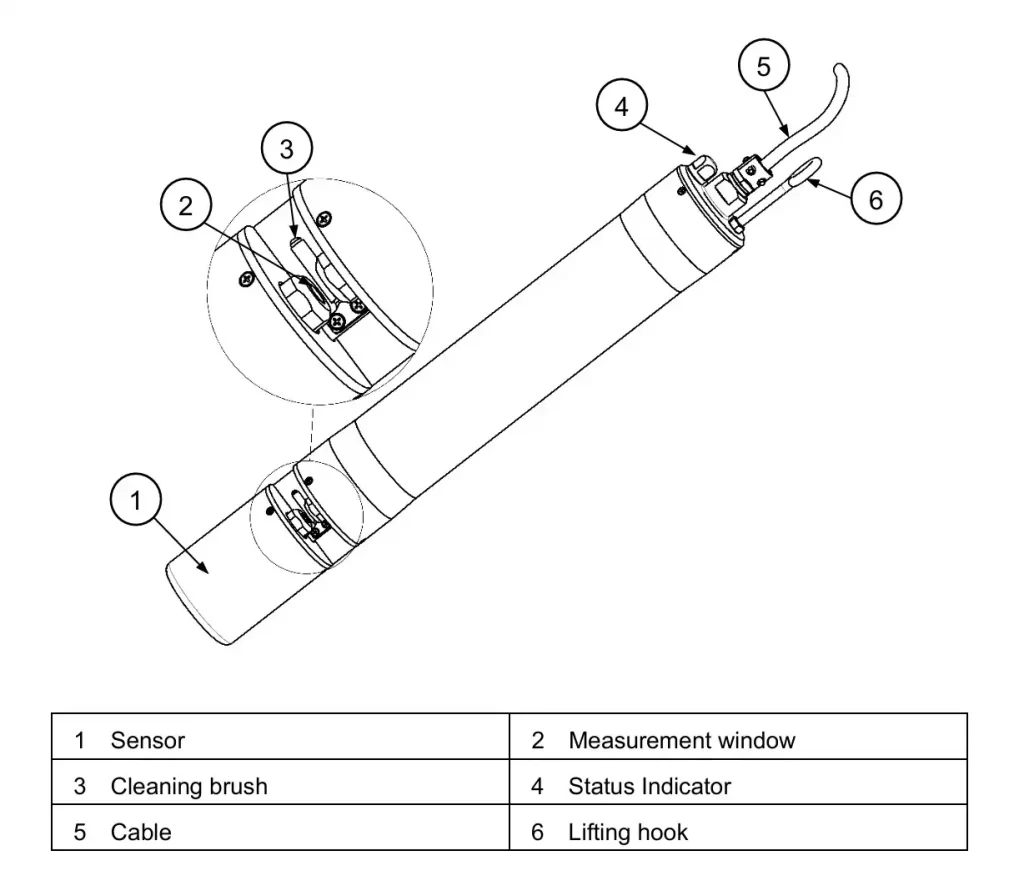

Product overview
SPS-F full spectrum water quality sensor adopts the measurement principle of UV-Vis absorption spectrum, real-time online monitoring of “light-pattern” information in the wavelength range of 200-800 nm, and multi parameter measurement by AI algorithms, including COD, TOC, DOC, BOD, TUR, TSS, nitrate, color, BTX (Benzene, Toluene, Xylene), H2S (hydrogen sulfide), etc.
It is mainly used for identification and real-time online monitoring of domestic and industrial wastewater influent characteristics, as well as process parameter optimization and wastewater treatment cost reduction and efficiency improvement.
It can be matched with our MC series data transmitter and Server cloud service to realize remote monitoring of data and remote operation and maintenance of equipment.

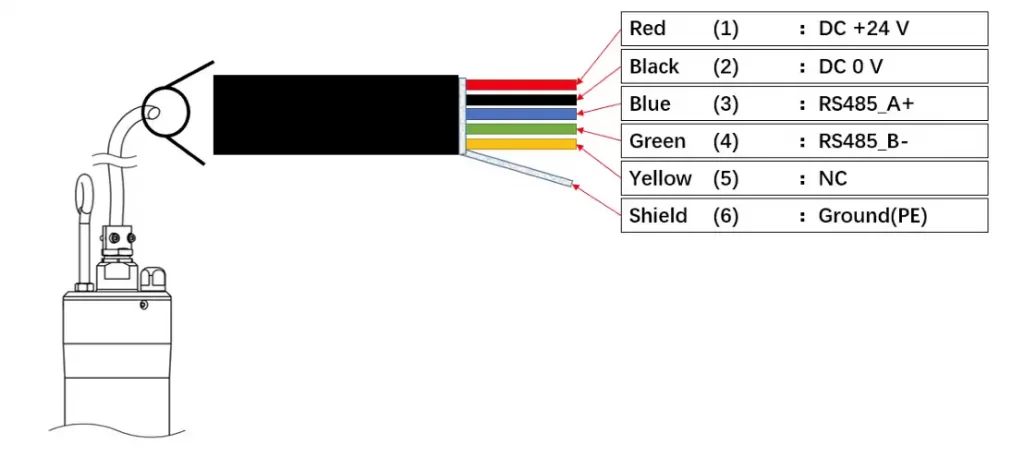

Interface definition
The electrical connection of SPS-F series sensor adopts 5-wire + shielding interface design, anti-corrosion cable, standard 6m (wire length can be customized).
Установка
Submerged installation

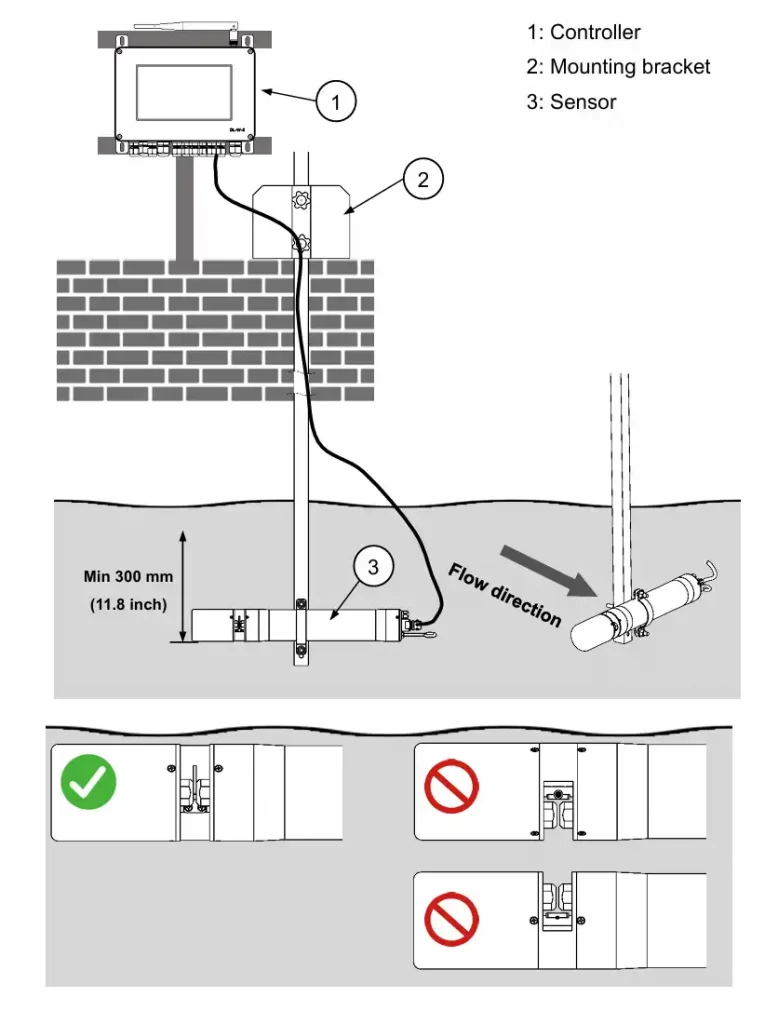

Horizontal installation
The SPS-F series sensor is recommended for submerged horizontal installation, which can effectively prevent suspended solids from depositing on the optical window.

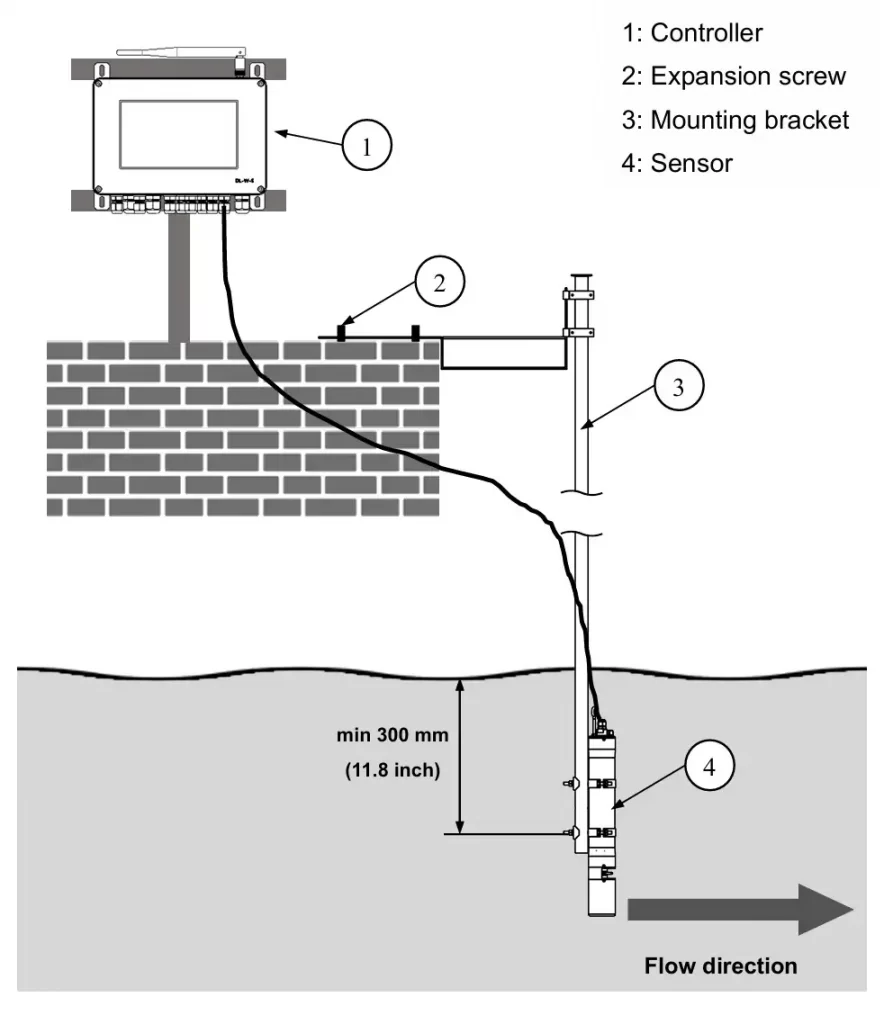

Vertical installation
When space is limited, the sensor can be installed vertically. If there is a large amount of suspended solids in the water sample, the sensor cleaning cycle can be shortened to 10 minutes (default is 30 minutes) to reduce the impact of suspended solids accumulation on the optical window.
Flow-through installation

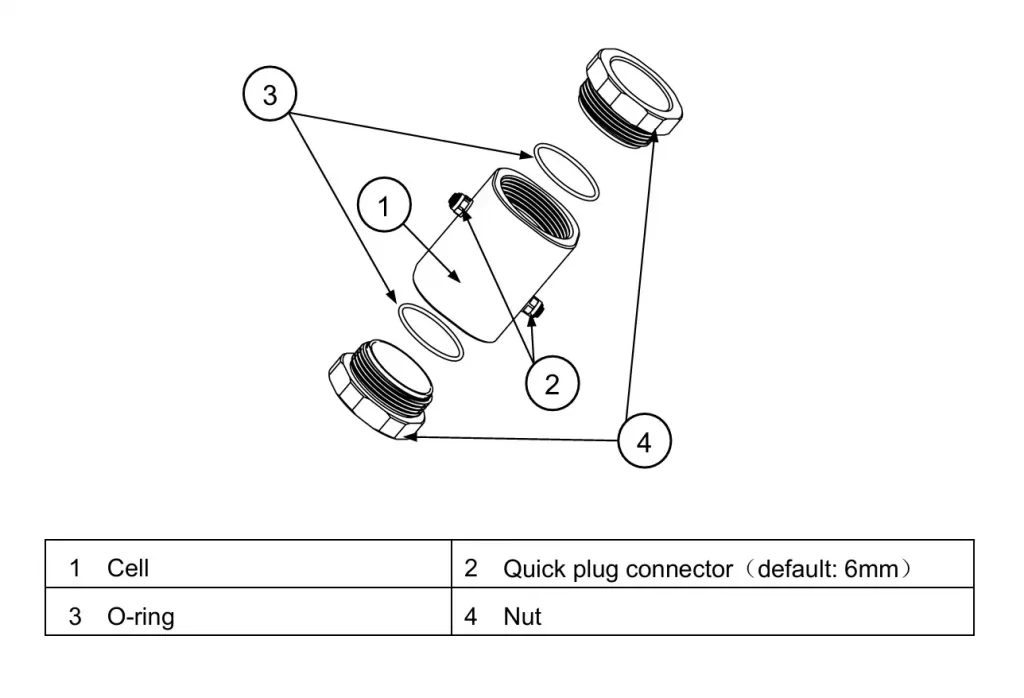

Flow-cell Overview: MT-F-Lxx is a specialized flow cell for our SPS-F-Lxx full-spectrum water quality sensor, which is suitable for pipe-mounted scenarios. The users can pipe the measured water body into the flow cell.
By tightening the nut, thus compressing the O-ring, the flow cell can be sealed.

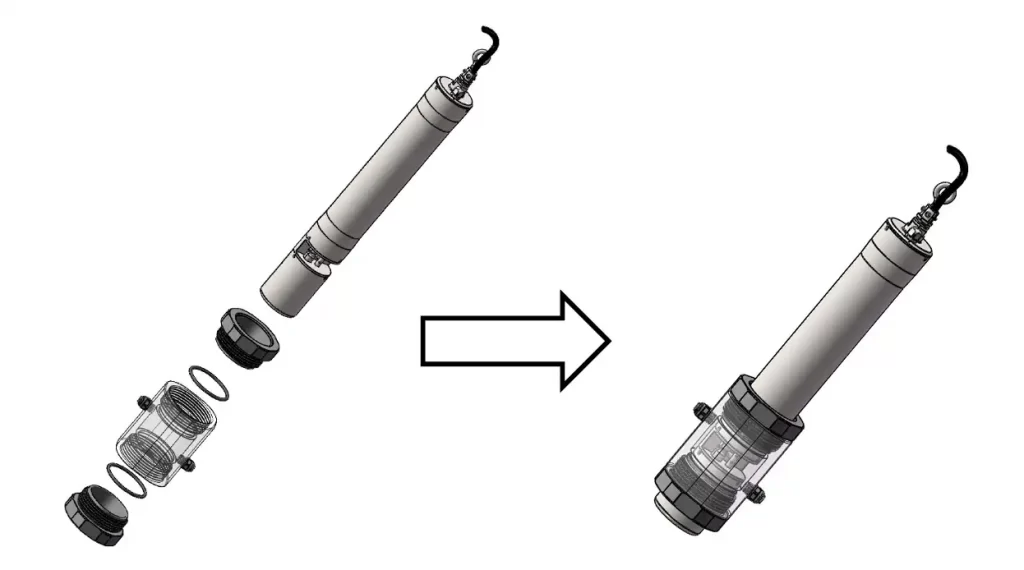

Installing sensor: The installation diagram of the flow cell is as follows.

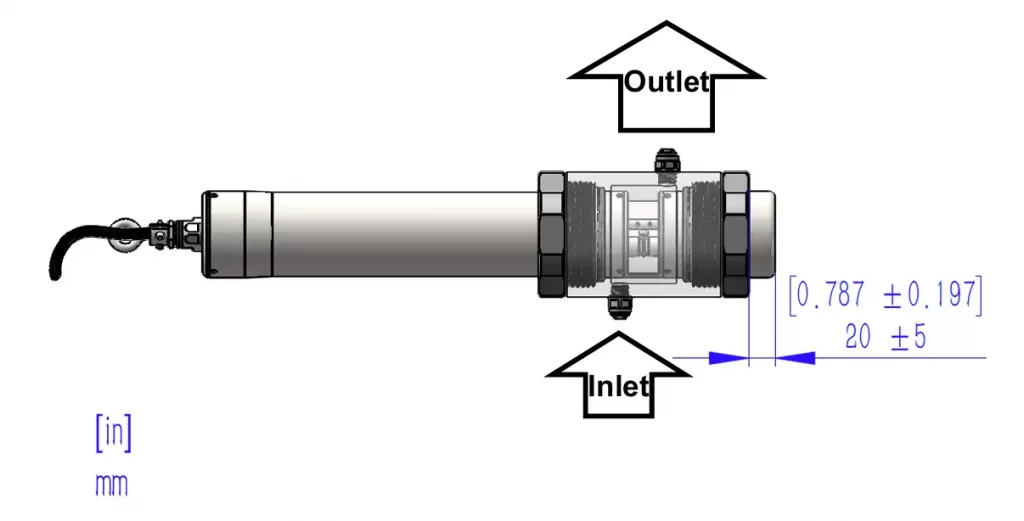

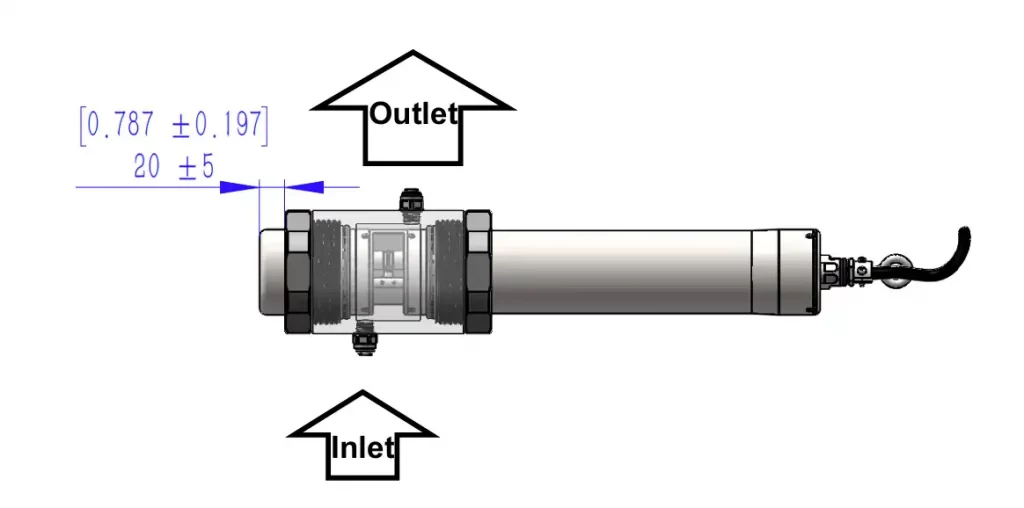

Pipeline installation: The installation follows the principle of bottom inlet and top outlet for the flow cell.
