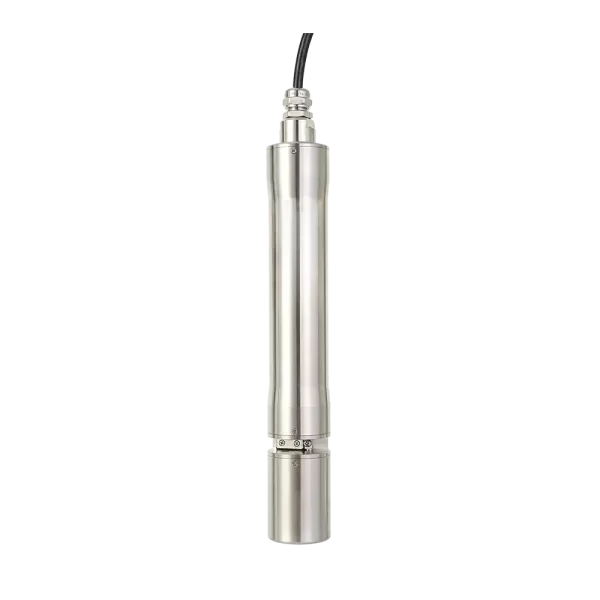

SPS-D Wasserqualitätssensor mit zwei Wellenlängen
Based on the principle of ultraviolet absorption spectroscopy, the dual-wavelength spectrum sensor can measure organic components in water and has a turbidity compensation function, effectively improving the actual water sample measurement accuracy.
It is suitable for monitoring domestic sewage, industrial wastewater, watersheds, etc. Compared with conventional chemical detection, it has the characteristics of high reliability, zero pollution, and zero delay. It realizes real-time online monitoring of organic pollutants.
The Dual-wavelength Water Quality Sensor can be matched with our MC series data collector and cloud service to realize remote real-time monitoring of data, operation, and equipment maintenance.
Parameter: COD, TOC, BOD, TUR, TSS, UV254, Temperature
- Optical in-situ measurement, no actual pollution, environmentally friendly.
- Quick measurement: the shortest measurement cycle is 1 second
- Long maintenance-free cycle, with its cleaning brush for cleaning.
- RS485 communication mode can quickly connect the meter Controller and control the sensor.
- IP68 protection grade can be used in harsh environments.
- Low power consumption! A battery can power it, and it is convenient for equipment deployment.
Spezifikation
| Artikel | Spezifikation |
|---|---|
| Principle | UV-Vis spectral absorption |
| Dimension | φ45×325 mm |
| Leistungsanforderungen | DC+12V~+24V |
| Measurement period | 1 seconds to 65535 seconds |
| Betriebstemperatur | 0 to 50℃ |
| Druck | 6 bar |
| Power | < 6 W |
| Material | AISI 316L, Titanium Alloy is available |
| Cleaning method | Cleaning brush |
| IP rating | IP68 |
| Sample flow rate | <3 m/s |
| Kommunikation | RS485 (Modbus RTU) |
Parameter
| Parameter | Modell Nr. | Bereich | Auflösung | Genauigkeit （Standardlösung） |
|---|---|---|---|---|
| COD | SPS-D-L10-P05 | 0-500 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L |
| SPS-D-L05-P05 | 0-1000 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L | |
| TOC | SPS-D-L10-P05 | 0～200 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L |
| SPS-D-L05-P05 | 0～400 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L | |
| BSB | SPS-D-L10-P05 | 0-300 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L |
| SPS-D-L05-P05 | 0-600 mg/L | 0.01 mg/L | ±2.5% or ±2.5 mg/L | |
| TUR | SPS-D-L10-P05 | 0-500 NTU | 0.01 NTU | ±2.5% or ±5 NTU |
| SPS-D-L05-P05 | 0-1000 NTU | 0.01 NTU | ±2.5% or ±10 NTU | |
| TSS | SPS-D-L10-P05 | 0-500 mg/L | 1 mg/L | ±5% or ±5 mg/L |
| SPS-D-L05-P05 | 0-1000 mg/L | 1 mg/L | ±5% or ±10 mg/L | |
| UV254 | SPS-D-L10-P05 | 0-400 | 0.01 | ±2.5% or ±2.5 |
| SPS-D-L05-P05 | 0-850 | 0.01 | ±2.5% or ±2.5 | |
| Temperatur | SPS-D-Lxx-P05 | 0-60 °C | 0.0625 °C | ±1 °C |
Anmeldung
Sewage Discharge Pollution Monitoring
monitor the dynamics of upstream and downstream sewage in real time.
Optimierung der Abwasserbehandlung
Real-time monitoring to control the movement of sewage and prevent sewage from flowing into polluted water bodies
Rural Sewage Treatment Monitoring
500 Ton per Day Rural Sewage Treatment Monitoring
