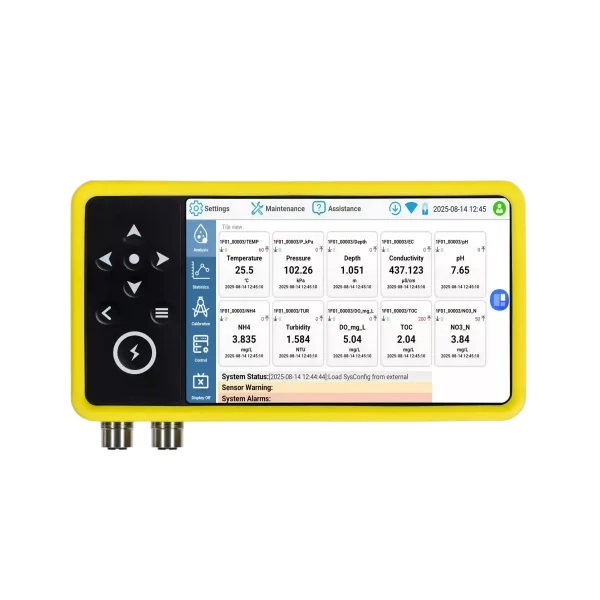

MC-HC Handheld Controller
Universal Modbus Transmitter: The MC-HC Transmitter is compatible with all SPECSENS sensors and any third-party device using standard Modbus RTU protocol, offering unparalleled system integration flexibility.
Comprehensive Data Logging: Acts as a powerful data logger with 32 GB of internal storage, supporting historical trend analysis on its Statistics Page and ensuring no data loss.
Multi-Wireless Connectivity: Equipped with 4G (user-optional), Wi-Fi, and Bluetooth for flexible and reliable remote data upload to cloud platforms using HTTP or MQTT.
Intuitive Touchscreen Interface: The 5-inch color touchscreen provides clear access to real-time data (Analysis Page), calibration functions, and device control settings.
Rugged and Portable Design: With an IP65 rating and a wide operating temperature range (-20°C to 60°C), the handheld MC-HC Meter Controller is built for demanding field conditions.
Extended Battery Life: Powered by a 6600 mAh rechargeable battery for long-lasting operation between charges.
Specification
| Item | Specification |
|---|---|
| Product description | Meter controller, connected to the sensor to display measured values and upload data |
| Display | 5-inch color LCD screen with touch function |
| Dimension (WxHxD) | 184x97x40 mm |
| Weight | 0.65 KG |
| Output voltage | DC 12V |
| Battery capacity | 6600 mAh |
| Protection class | IP65 |
| Mounting | Handheld |
| Operating temperature | Charging: 10-45 °C (50 – 113 °F) Using: -20-60 °C (-4 – 140 °F) |
| Storage temperature | -10-45 °C (14- 113 °F) |
| Data storage | 32GB |
| Interface | 5-pole plug connector |
| Wireless Communication | WiFi (HTTP, MQTT protocol), Bluetooth, 4G (user optional) |
| Location | GPS |
| Warranty | One year |
Application
The MC-HC Meter Controller is the perfect central hub for a wide range of monitoring and control scenarios, especially those involving water quality sensors:
Water Quality Monitoring Networks: Ideal for continuous monitoring of parameters like COD, pH, turbidity, and dissolved oxygen in rivers, lakes, and wastewater treatment plants.
Industrial Process Control: Used to calibrate sensors, adjust setpoints, and automate control sequences (e.g., activating cleaning brushes) in industrial settings.
Remote Environmental Data Acquisition: Its 4G capability makes it a reliable data logger for transmitting information from remote, unmanned sites to a central office.
Research and Portable Testing: Serves as a portable lab station for researchers and technicians using SPECSENS sensors for on-site analysis.
Municipal Sewage Pipeline Monitor
Power sensors, collect data and transmit it back to the cloud
Online Water Quality Monitoring Network
Turbidity and Chlorine water quality monitoring in the pipeline network
