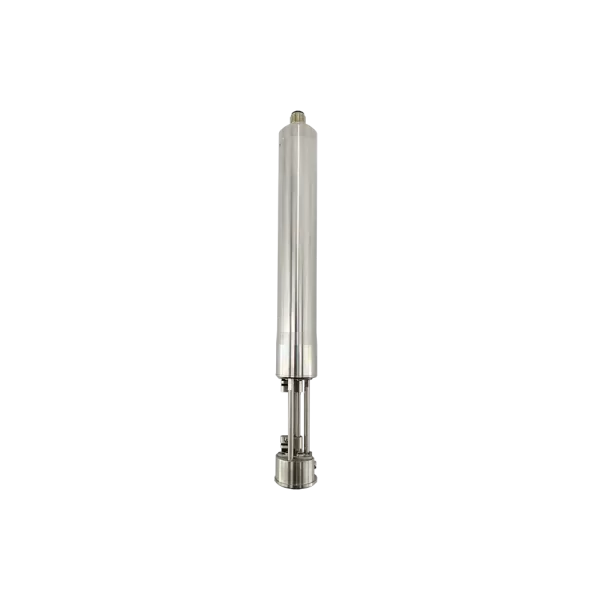

SPS-Color-C Color Water Quality Sensor
The color water quality sensor is an online color monitoring sensor that self-cleans for long-term, reliable, and maintenance-free real-time water quality monitoring. The sensor can be widely used in drinking water, tap water, water pipeline networks, groundwater, and sewage.
Parameter: Color, Temperature
- Quick measurement: the shortest measurement cycle is 10 second
- No chemical reagent consumption, environmentally friendly
- Self-cleaning brushes for long maintenance-free cycles and low maintenance costs
Specification
| Item | Specification |
|---|---|
| Principle | Multi-wavelength absorption spectrometry |
| Dimension | φ30×301mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 6bar |
| Material | AISI 316L, Titanium Alloy (Optional) |
| Cleaning method | Cleaning brush |
| Sample flow rate | < 3m/s |
| Communication | RS485(Modbus RTU), Bluethood |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Color | SPS-Color-C | 0-500 PCU (Platinum-Cobalt Unit) | ≤ 1 PCU | ±1.5 PCU or ±3% |
| Temperature | SPS-Color-C | 0-50 ℃ | 0.1 ℃ | ±1 ℃ |
Application
River, watershed monitoring
Effective for influent and effluent monitoring in both domestic and industrial wastewater.
Sewage Treatment Optimization
Supports treatment process efficiency, providing actionable data for parameter adjustments.
Urban Water Networks
Monitors water quality in municipal pipe networks to ensure compliance and quality.
Environmental Water Bodies
Ideal for basin, surface water, and groundwater monitoring.
