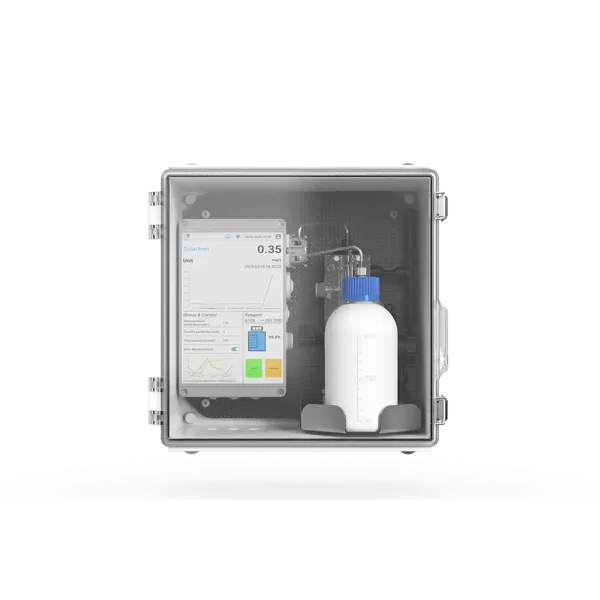

SPA-Fe-T01 Total Iron Water Quality Analyzer
SPA-Fe-T01 is an online total iron analyzer that measures the concentration of dissolved iron (trivalent and divalent iron) in water by titration and colorimetric methods.
Reagents are automatically pumped into the water sample for reaction, the endpoint of the response is determined by the colorimetric method, and then the total iron concentration in the water is determined based on the amount of reagent added. By selecting different reagents, the analyzer can measure different total iron concentrations.
Parameter: Total Iron, Fe
- Accurate and reliable fully automatic hardness analyzer
- With self-diagnosis, abnormal alarm, data exceeding the standard alarm function
- Interval measurement optional, minimum 5min
- Supports Modbus RS485 and 4-20mA signal outputs
- Support 4G, Wi-Fi wireless data transmission
Specification
| Item | Specification |
|---|---|
| Dimension | 300×300×180 mm (11.81×11.81×7.09 inch) |
| Power consumption | 25 W |
| Power requirements | 100-240 VAC, 50/60 Hz |
| Operating temperature | 5 to 45℃ |
| Pressure | 0.2-2 bar |
| Installation | Wall-mounted |
| IP rating | IP54 |
| Communication | RS485(Modbus RTU), WiFi/Bluetooth, 4G, LoRa |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Total iron (Fe3+&Fe2+) | SPA-Fe-T01 | 0.01-0.5mg/L 0.2-6.0mg/L | ± 5% | ± 10% |
Application
River, watershed monitoring
Effective for influent and effluent monitoring in both domestic and industrial wastewater.
Sewage Treatment Optimization
Supports treatment process efficiency, providing actionable data for parameter adjustments.
Urban Water Networks
Monitors water quality in municipal pipe networks to ensure compliance and quality.
Environmental Water Bodies
Ideal for basin, surface water, and groundwater monitoring.
