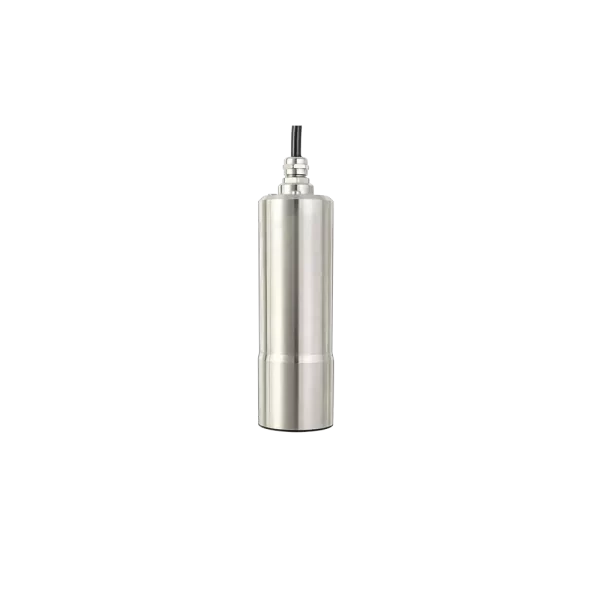

SPS-T-SC1 Turbidity/Suspended Solids Water Quality Sensor
The turbidity/suspended solids (sludge concentration) sensor is a water quality sensor that measures turbidity and suspended solids based on 90° and backscattered light measurement principles.
It is mainly used in surface water, domestic sewage, and industrial sewage. The turbidity sensor has an automatic optical window cleaning function, significantly reducing manual maintenance and ensuring the sensor’s regular operation even in harsh environments. In addition, with the MC-W-S series meter controller and cloud service, users can realize on-site and remote data viewing.
Parameters: Turbidity, TUR, SS, TSS
- Optical in-situ measurement
- Quick measurement: the shortest measurement cycle is 3 seconds
- The maintenance-free period is long, and the sensor has a cleaning brush
- RS485 communication mode can quickly connect to the meter
- IP68 protection grade can be used in harsh environments
- Low power consumption, can be powered by battery, convenient for equipment deployment
Specification
| Item | Specification |
|---|---|
| Principle | Scattering |
| Dimension | φ55×212mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 6bar |
| Power | <3W |
| Material | AISI 316L |
| Cleaning method | Cleaning brush |
| IP rating | IP68 |
| Sample flow rate | <3m/s |
| Communication | RS485(Modbus RTU) |
Parameter
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| Turbidity | SPS-T-SC1 | 0-4000 NTU/FNU | 0.001 NTU | ±5% or ±0.015 NTU |
| TSS | SPS-T-SC1 | 0-10 g/L (diatomaceous earth), 0-5 g/L (kaolin) | 1 mg/L | ±5% or ±1 mg/L |
Application

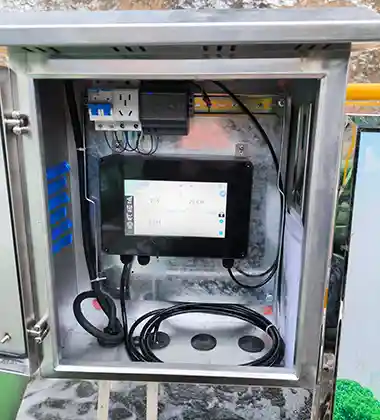

Coal Mining Water Turbidity Monitor
Coal Mine Wastewater Leakage Monitoring

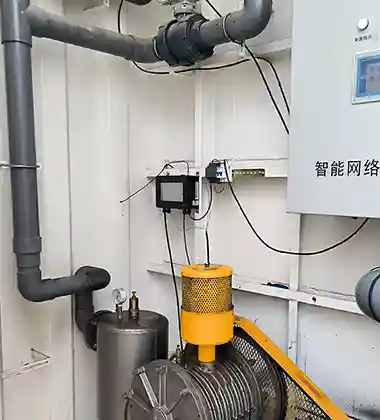

Rural Sewage Treatment Station
The central control system timely controls the time required for each reaction stage through data fed back by sensors, greatly improving the efficiency of sewage treatment facilities.
